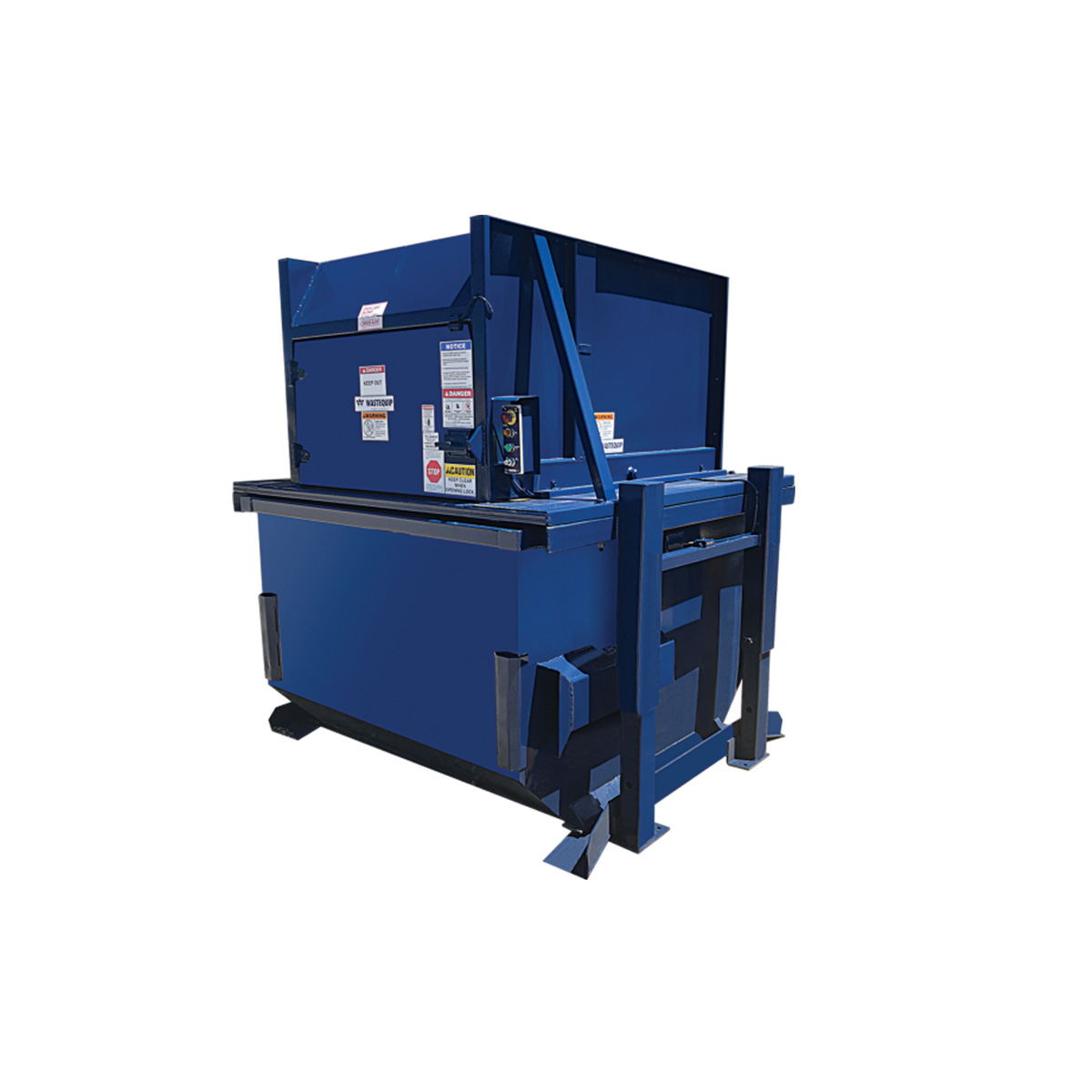

Vertical Compactors

Vertical Compactors for Sale

Wastequip's vertical compactor, the OptiPak, stands out from the competition with its 30-second cycle time. Along with its 18” of ram penetration and over 25,000 lbs. of ram force, this model ensures maximum compaction to meet your business's needs.

Request a Quote Find a Dealer

Product Details

Product Features

The 4-in-1 head can be changed to feed from the front, rear, left side, or right side
Selectable operational modes reduce complexity and extend service life
Full Container Light alerts you when trash is ready for pickup
Electronic door/container interlock ensures safe operation
Low-temperature oil works well in hot or cold climates*
The driver LED Light is illuminated when it is safe for the hauler to remove the container
Built-in stops hold the container in place to prevent movement during compaction

Available Models & Sizes

OptiPak Series: 3-yard, 4-yard, 6-yard, 8-yard compactors

Compactor Compatibility

Waste Type: General waste, recyclables
Common Industries: Small businesses, restaurants, convenience stores

Warranty & Certifications

1-1-1 Warranty (1-year structural, 1-year parts, and 1-year labor)

*Use of an oil heater or extreme cold weather hydraulic oil is recommended in extreme cold conditions.

NOTE: Single-phase operation will result in variations in hydraulic pressure, overall force, and cycle time.

Product Specifications

Standard Features:

Driver Light to indicate when the container is safe for the driver to remove it
Full container light
Magnetic Interlock preventing operation if door is open
Operational and service manual
Built-in stops that hold the conta

Optional Features:

Chute extension
Loading platform with safety rail
Through the wall installation
Oil Heater
Automatic odor suppression system
Biodegradable oil
Single-phase operation available

Charge Box:

Wastequip rating: 0.5 cu. yds.
Waste rating: 0.42 cu. yds.
Compactor weight with stand and container
3,340 lbs. (3-yard)
3,540 lbs. (4-yard)
3,740 lbs. (6-yard)
3,940 lbs. (8-yard)

Compactor Head:

Sides: 12-gauge, 42″ H x 76″ L
Top deck: 12-gauge, 84 1/4″ W x 84″ L

Ram:

Ram height: 36”
Ram penetration: 18.00”
Face plate: 7-gauge, 48” W x 36” H
Base plate: 7-gauge, 47-1/2” W x 19” H
Side plates: 7-gauge, 36” W x 19-11/16” H

Electrical:

Motor: 3hp TEFC housing [ 2hp ]
Voltage: 208/230/460, 3-phase 60 Hz [ 115/208/230 ]
Power box: UL-rated, TEFC housing
Automated cycle operation: turn-key switch-ram extends, retracts, and stops automatically

Hydraulic Performance:

Pump: 2.8 gpm [ 1.8 gpm ]
Pump type: Gear
Hydraulic oil tank: 8.7-gallon reservoir
Cylinder bore/rod/stroke: 4” bore, 2” rod, 16” stroke
Normal ram face pressure: 25,100 psi [ 20,700 psi ]
